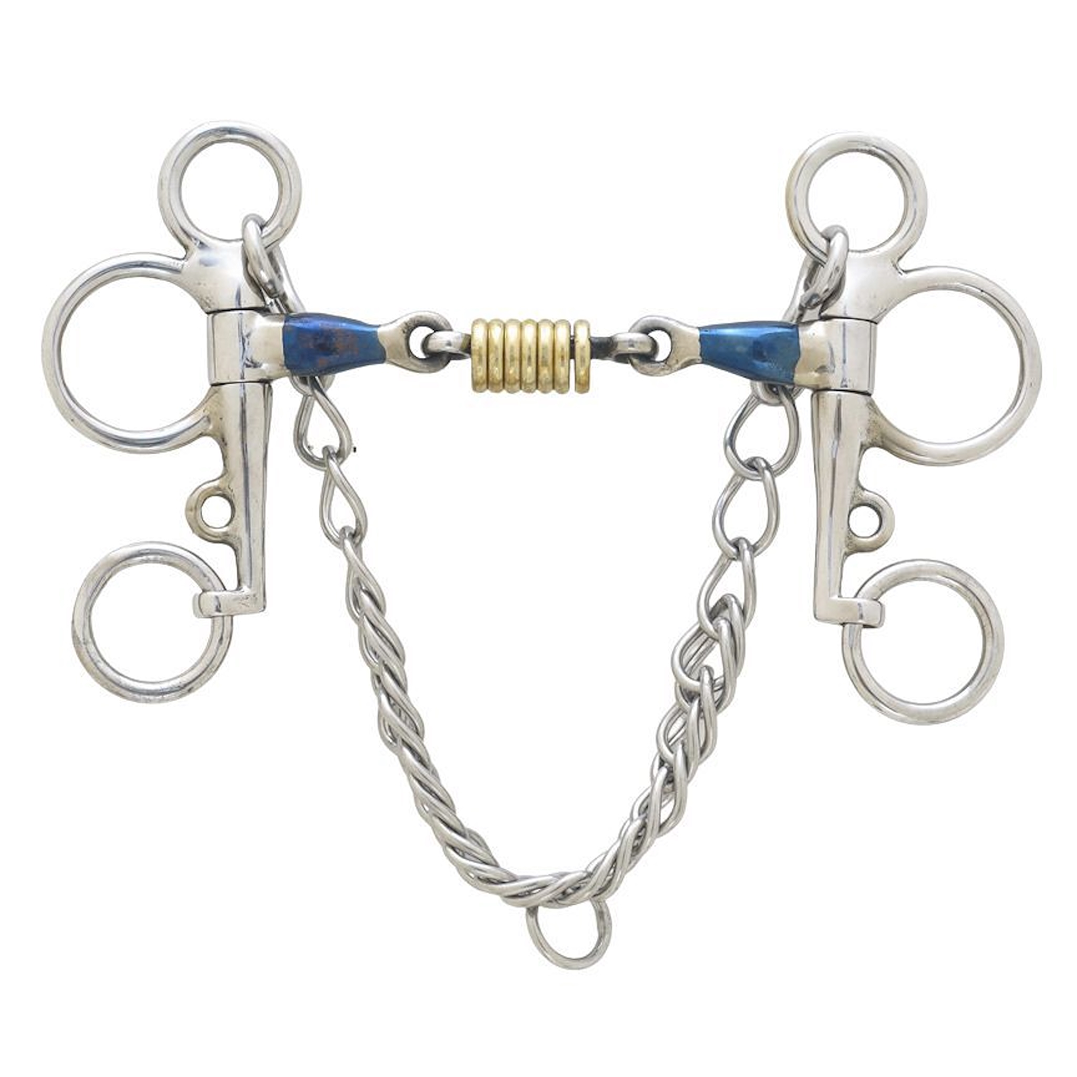

Blue Steel Double Jointed with Brass Rollers Tom Thumb Pelham Bit

A Tom Thumb Pelham is a Pelham variant built with notably shorter shanks than a traditional Pelham — the name "Tom Thumb" refers to the reduced shank length rather than a specific mouthpiece style.

Design

• Like any Pelham, it combines the function of a snaffle and a curb bit in one mouthpiece, with an upper ring at the mouthpiece for the snaffle rein and a lower ring at the end of the shank for the curb rein.
• The defining feature: short shanks — as short as around 2 inches, compared to most standard Pelhams which are typically less than 4 inches but noticeably longer than the Tom Thumb.
• It's used with a curb chain, sitting in the chin groove.
• Mouthpieces vary widely — single-jointed, mullen, rubber, curved — independent of the short-shank feature.

Function

• Reduced leverage/severity: Because leverage is directly related to shank length, the shorter shanks mean significantly less curb action is available compared to a traditional Pelham. The top rein still provides snaffle-style pressure to the tongue and corners of the mouth, while the bottom rein still increases leverage and curb chain pressure — but the maximum amount of leverage achievable is much reduced.
• Milder overall action: This makes the Tom Thumb Pelham a gentler introduction to curb action than a standard or long-shanked Pelham, while still offering the dual snaffle/curb functionality.
• Mouthpiece effects still apply: As with any Pelham, the specific mouthpiece (single-jointed, mullen, curved, rubber) still shapes the feel — a single joint gives a nutcracker action on the tongue and bars, a mullen gives even pressure, and so on — independent of the shank length itself.

What it's good for

• Less experienced riders: Due to the reduced curb action available, the Tom Thumb Pelham is often recommended as a more forgiving option for riders who are still developing independent, educated hands, since there's less potential for accidental severity if the curb rein is used clumsily.
• More sensitive horses: The lower ceiling on leverage also makes it a reasonable option for horses that don't need or wouldn't tolerate strong curb pressure, but still benefit from a little extra "brake" beyond a plain snaffle.
• Riders wanting a lighter version of Pelham control: Suitable for those who want the general concept of a Pelham (snaffle plus optional curb) without the stronger action of a full-length-shank version.
• A stepping stone bit: Can serve as an introduction to curb-rein concepts before progressing to a standard Pelham or double bridle, since the milder leverage gives more room for error while learning.

A note on design variation and caution

• It's worth noting that "Tom Thumb" is also the name of a separate, unrelated western curb bit (short, straight-shanked, with a firm swivel mouthpiece) that has a reputation in some western riding circles for being harsher than its simple appearance suggests, due to how the joint can act on the roof of the mouth. The Tom Thumb Pelham is a different bit — an English-style Pelham with shortened shanks — but the shared name occasionally causes confusion, so it's worth confirming with a tack supplier exactly which design is being referenced.
• As with any Pelham, a properly fitted curb chain (roughly 2 fingers' clearance) is essential for correct, comfortable action.

Competition legality

Like other Pelhams, the Tom Thumb Pelham is not FEI dressage-legal, but is generally permitted in disciplines like showing, hunting, and eventing where standard Pelhams are accepted.

Summary

The Tom Thumb Pelham offers the same core snaffle-and-curb combination as a standard Pelham, but with short shanks that limit the maximum leverage available, making it a milder, more forgiving option — particularly suited to less experienced riders or more sensitive horses who benefit from some curb influence without the stronger action of a full-length Pelham.

This describes a mouthpiece style and material combination rather than a single "type" of bit — it refers to features that can be applied to almost any cheekpiece design (loose-ring, D-ring, eggbutt, or even a gag), so the ring/cheek style would still determine the bit's overall lateral action. But the mouthpiece itself — double-jointed, blue steel, with brass rollers — has specific, well-defined functions.

Breaking down the features

• Double-jointed mouthpiece:
• Consists of three parts rather than a single hinge — two outer sections plus a center link/piece.
• The center piece lies flatter across the tongue than a single joint would, eliminating the sharp "nutcracker" action that a single-jointed mouthpiece creates (where the two halves fold upward into a V-shape and can pinch the tongue and jab the roof of the mouth).
• Distributes pressure more evenly across the tongue and bars, generally making it a more comfortable, gentler mouthpiece profile than a single-jointed bit.
• The thicker the center portion, the more surface-area pressure lands on the tongue specifically.
• Blue steel material:
• Blue steel is a technologically advanced version of traditional sweet iron (black steel).
• It oxidizes faster and more easily than standard sweet iron, developing a light surface rust when exposed to air, humidity, and saliva.
• This surface rust has a naturally sweet taste, which stimulates the horse's saliva production and encourages better bit acceptance — horses tend to mouth, chew, and salivate more, and often relax their jaw more readily as a result.
• The rust is cosmetic and easily wiped off with a damp cloth; it's considered a normal, expected part of how the metal functions rather than a defect.
• Brass rollers:
• Small rollers or discs set into the mouthpiece (usually at the center joint) that rotate freely, giving the horse something to "play with" using its tongue.
• This can help keep a fidgety or mouthy horse's mouth quieter and more occupied/settled, redirecting nervous tongue movement into a small, contained motion rather than more disruptive tongue or jaw evasions.
• Some brass roller designs, particularly ring-style rollers at the joint, can also increase tongue activity and salivation further, reinforcing the sweet-iron effect.
• The brass material itself, similar to copper, is often chosen because horses tend to find its taste and warmth pleasant, adding to overall acceptance.

What it's good for

• Horses that are mouthy, tense in the jaw, or resistant to accepting contact: The combination of a gentler double-jointed profile, a taste that encourages salivation, and rollers to occupy the tongue is specifically aimed at improving relaxation and acceptance of the bit.
• Horses that grind, clamp, or fuss with a plainer mouthpiece: The rollers give restless tongues something constructive to do, which can reduce fidgeting or tension-related evasions.
• Riders wanting a milder feel than a single-jointed bit: The double joint's flatter profile avoids the sharper nutcracker action, making it a comfortable step up from a basic single-jointed snaffle.
• General schooling and everyday riding: This mouthpiece style is popular across many disciplines specifically because it's seen as a comfort-focused, acceptance-boosting design rather than a stronger or more corrective one.

A note on classification

• Because "double-jointed blue steel with brass rollers" describes the mouthpiece and material, not the cheek/ring style, its overall action still depends heavily on what kind of cheek it's paired with — a loose-ring version will behave differently (softer, more mobile) than the same mouthpiece on a D-ring, Full Cheek, or gag bit (which would add lateral support or leverage on top of the mouthpiece's own gentle action).
• This mouthpiece and material combination is generally considered mild to moderate, focused on comfort and acceptance rather than added control — any extra severity would come from the cheek style it's built into, not from this mouthpiece itself.

Summary

A double-jointed blue steel mouthpiece with brass rollers combines three comfort- and acceptance-focused features: a flatter, gentler double joint (avoiding the nutcracker effect), blue steel's natural sweet taste (encouraging salivation and relaxation), and rollers (giving a fidgety tongue something to do) — making it a popular, mild-to-moderate mouthpiece choice for horses that need encouragement to relax, salivate, and accept contact comfortably, regardless of which cheek/ring style it's built onto.
