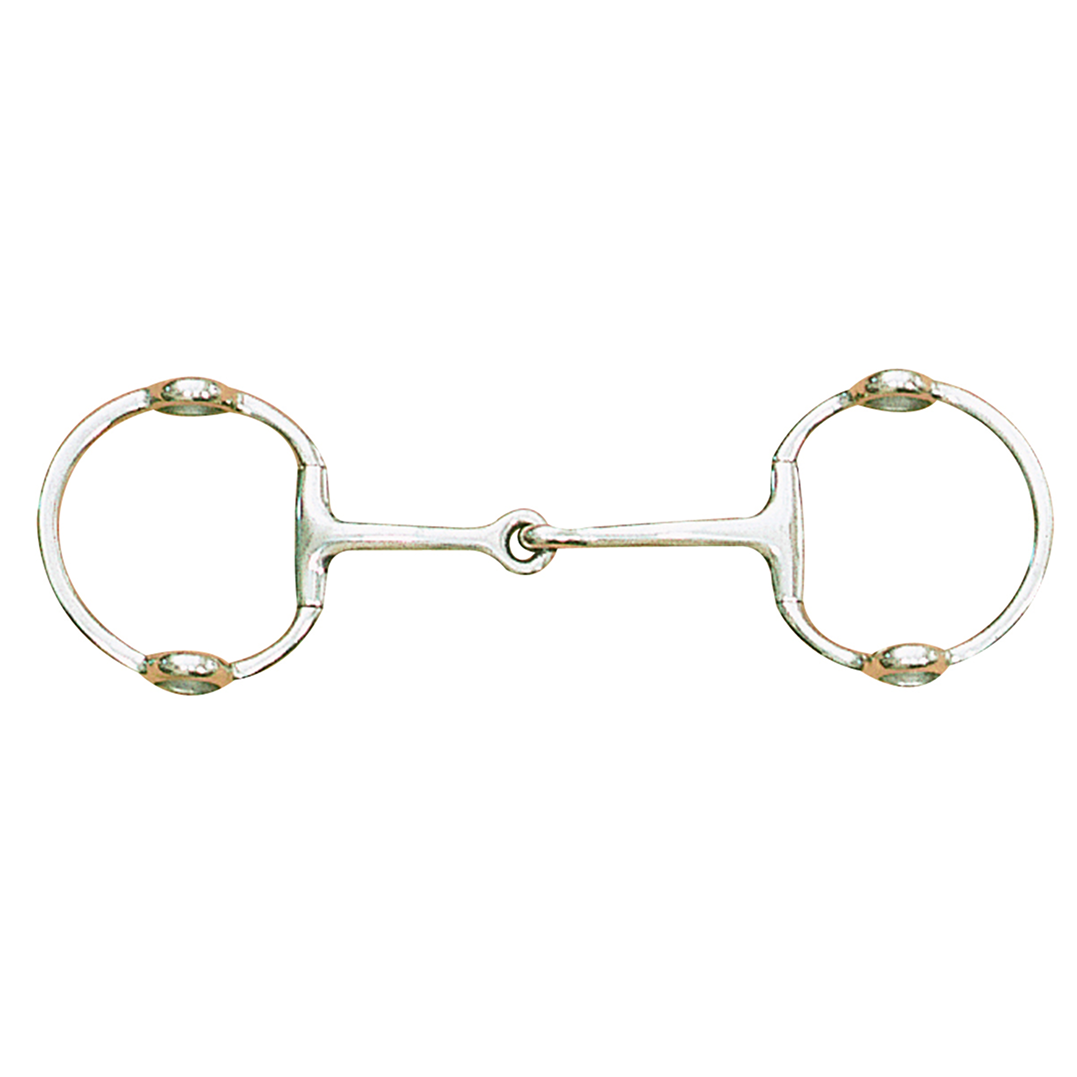

Jointed Cheltenham Gag Bit

A Cheltenham gag is a type of "running gag" bit — a category of gag snaffle recognized by its eggbutt-style rings with holes, through which specially adapted rounded leather or rope cheekpieces are threaded to create a leverage-lifting action.

Design

• The bit itself resembles an eggbutt snaffle, but the rings have holes rather than being solid.
• Gag cheekpieces (rounded leather or rope, sold separately) pass through these holes and attach to the bridle above and to a small ring below, where the reins are fastened — this describes their action as the bit runs upwards on the bridle's specially adapted rounded leather or nylon cord cheek pieces, with these cheek pieces passing through the bit's specially adapted sides, concluding in rings to which a set of reins are attached. Horse & Hound
• When rein pressure is applied via the gag cheekpiece, the bit slides upward and rotates slightly in the mouth. Wikipedia
• The mouthpiece is most commonly single-jointed, though other options exist.
• Severity is influenced by ring size, with larger rings allowing for more pronounced gag action. Wikipedia

Function

• Head-raising action: Gags work by raising the bit up in the horse's mouth and applying poll pressure, with the effect usually lifting the horse's head. Unicorn SaddleryTheSaddleryShop
• Nutcracker effect: With a single-jointed mouthpiece, a 'nutcracker' action applies pressure to the tongue and bars of the mouth. Unicorn Saddlery
• Smoother, steadier action than other gags: The eggbutt rings help prevent the bit from moving around too much in the mouth, and can encourage the horse to stretch forward into the contact. This makes Cheltenham gags a steady, smooth-acting gag with non-pinch cheeks, a good option for horses sensitive to pinching even with bit guards. Horse & HoundEquusport
• No upper limit on lift: Gags are strong bits and need to be used with care, as there is no limit to the amount they can be raised in the mouth. Strong rein pressure can lift the bit two inches or more, risking discomfort, pinching, or tearing at the corners of the lips. TheSaddleryShopWikipedia
• Two reins recommended: It's recommended for use with two reins — one attached to the end of the cheek straps, and one directly to the bit rings, with the bit-ring rein acting as a normal eggbutt snaffle would — giving the rider the option to use plain snaffle pressure most of the time, engaging the gag action only when needed. Horse & Hound
• Can help with tongue-over-bit issues: The high position of the mouthpiece in use can sometimes help prevent a horse from getting its tongue over the bit. TheSaddleryShop

What it's good for

• The Cheltenham gag is used mostly on horses that lean on the bit or become strong during fast work. Horse & Hound
• It's often used for fast work and jumping disciplines such as cross country, where the head may need to be raised quickly to gain control. Unicorn Saddlery
• It's most commonly seen in eventing and showjumping when increased control is required. Horse & Hound
• Experienced riders only: This bit should be used by experienced riders only, given the strength of the leverage action and the skill needed to manage two reins effectively. Horse & Hound

Competition legality

Gag bits, including the Cheltenham, are generally not dressage-legal and are restricted to disciplines like eventing (cross-country phase), showjumping, and some hunting contexts where stronger control is accepted.

Summary

The Cheltenham gag is a smooth, steady-acting running gag that raises the bit and applies poll pressure to help control strong, leaning, or fast-moving horses — best used with two reins by an experienced rider, and reserved for disciplines like cross-country and showjumping rather than dressage.

The single-jointed snaffle is the most classic, traditional bit mouthpiece design — a simple two-piece mouthpiece joined at a single center hinge, made of durable, low-maintenance stainless steel. It's the baseline against which all the double-jointed variants discussed earlier (French Link, Dr. Bristol, oval/lozenge) are typically compared.

Design

• The mouthpiece consists of two straight (or slightly curved) bars joined by a single hinge in the center — one break, rather than the two breaks found in double-jointed designs.
• Stainless steel is durable, tasteless, non-rusting, and low-maintenance, with no natural salivation-boosting properties of its own (unlike sweet iron/blue steel or copper).
• The cheek/ring style (loose-ring, D-ring, eggbutt, Full Cheek, etc.) is independent of this basic mouthpiece shape and determines the bit's lateral action and stability.

Function

• The "nutcracker" effect: This is the defining characteristic of a single joint. When rein pressure is applied, the two halves of the mouthpiece fold upward at the center hinge, forming a V-shape that presses down onto the tongue and bars while the point of the joint can rise up toward — and in some horses' mouths, contact — the roof of the mouth (palate).
• Direct, clear pressure: Despite the nutcracker action having a reputation for being sharper than double-jointed designs, many riders and trainers value the single joint precisely because it gives a very clear, direct, and immediate signal — there's no additional link or plate to soften or diffuse the pressure, so the horse feels a straightforward, unambiguous cue.
• Independent side action: Like double-jointed bits, a single joint still allows each side of the mouthpiece to move somewhat independently, which can help with clear lateral and turning cues, though the "collapse" of the joint itself is more pronounced than in double-jointed designs.
• Pressure concentration: Because there's only one hinge point, pressure and the folding action are concentrated more centrally, rather than being distributed more broadly across the tongue as with a French Link or lozenge.
• No leverage or added severity beyond the mouthpiece itself: As a true snaffle, this remains direct pressure only — no shank, curb chain, or poll pressure.

What it's good for

• Straightforward, well-established horses: Many horses go very comfortably in a single joint, especially those with average mouth conformation (not an especially low palate or a very fleshy tongue) that doesn't make them prone to discomfort from the nutcracker action.
• Riders wanting simple, direct, unambiguous communication: Because there's no additional link to soften or spread the signal, some riders and trainers prefer the single joint specifically for its clarity, particularly for teaching clear lateral or flexion cues.
• General, all-purpose riding across most disciplines: The single-jointed snaffle remains one of the most widely used and recognized mouthpiece shapes worldwide, suitable for schooling, hacking, and competition in disciplines from dressage to jumping to Western riding.
• Riders on a budget or wanting a dependable default: Being the simplest, most classic jointed design, single-jointed stainless steel snaffles tend to be widely available and affordable.

A note on suitability

• Horses with a low palate, thick or fleshy tongue, or particular sensitivity in the mouth may find the nutcracker action of a single joint uncomfortable, since the rising point of the joint has more potential to contact the roof of the mouth — these horses are often better suited to a double-jointed mouthpiece (French Link, lozenge) that eliminates or reduces this action.
• Whether a single joint is "harsh" is also very individual — some horses that seem uncomfortable in a double-jointed bit (due to the independently moving sides, or a poorly-shaped center link) may actually go more settled and confident in a plain single joint, so it's not universally milder or harsher; it depends on the horse's specific conformation and preference.
• As with all bits, its severity in practice depends heavily on the rider's hands — a single joint used with quiet, educated contact can be entirely appropriate even for sensitive horses, while a double-jointed bit used harshly can still cause discomfort.

A note on classification

• The overall lateral action and stability still depends on the cheek style the mouthpiece is built into — a single joint on a loose-ring will feel different from the same mouthpiece on a D-ring or Full Cheek.
• Single-jointed stainless steel is generally considered a standard, moderate mouthpiece — milder than a Dr. Bristol or Broken Segunda, but with more of a "point" of pressure than a French Link, oval/lozenge, or mullen mouth.

Summary

A Single-Jointed Stainless Steel bit offers the most classic, traditional jointed mouthpiece shape — direct, clear pressure via a single center hinge, paired with a practical, low-maintenance material — making it a dependable, widely used, all-purpose choice suited to most horses with typical mouth conformation, though horses with a low palate or particularly sensitive mouth may do better in a double-jointed alternative that softens or eliminates the nutcracker action.
