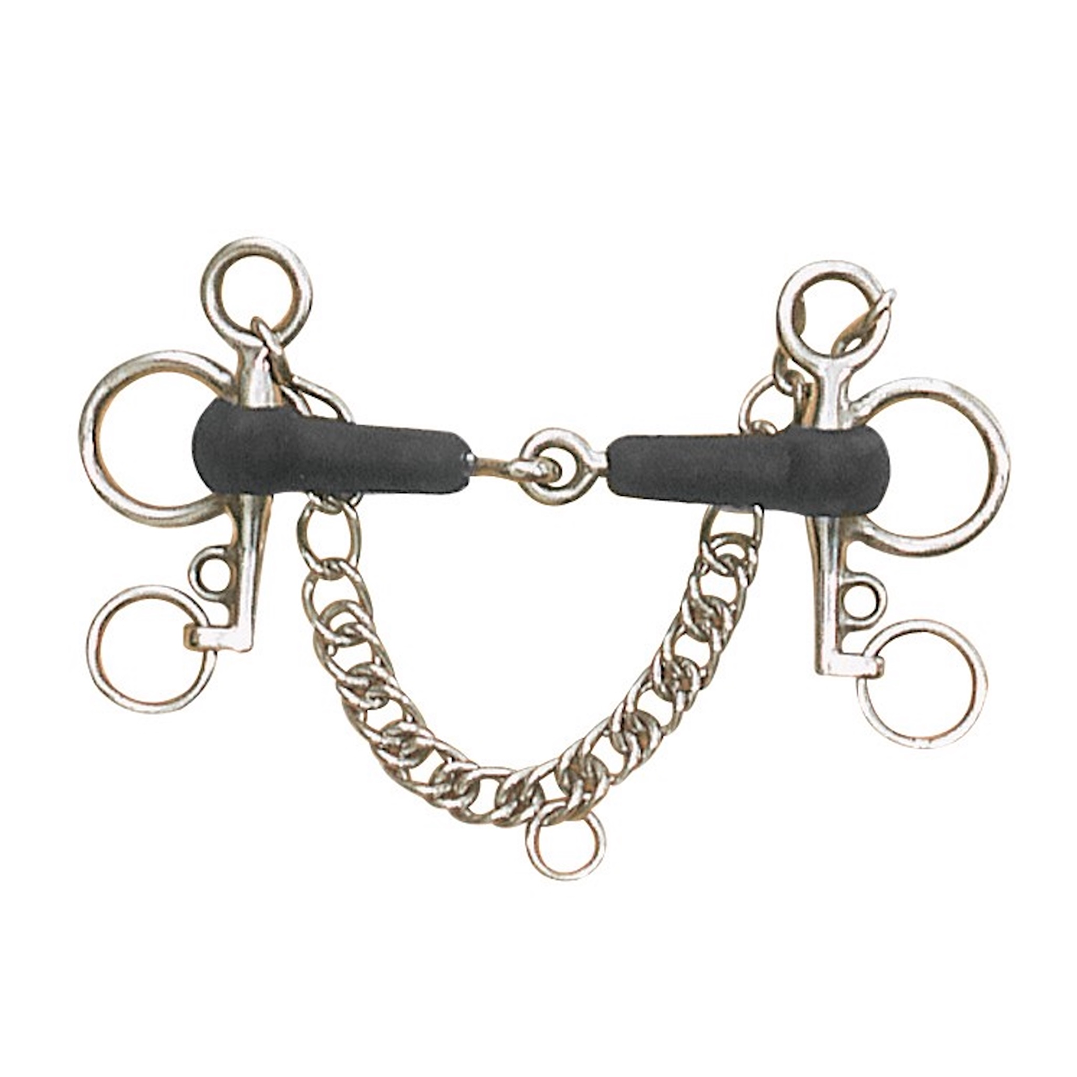

Jointed Rubber Tom Thumb Pelham Bit

A Tom Thumb Pelham is a Pelham variant built with notably shorter shanks than a traditional Pelham — the name "Tom Thumb" refers to the reduced shank length rather than a specific mouthpiece style.

Design

• Like any Pelham, it combines the function of a snaffle and a curb bit in one mouthpiece, with an upper ring at the mouthpiece for the snaffle rein and a lower ring at the end of the shank for the curb rein.
• The defining feature: short shanks — as short as around 2 inches, compared to most standard Pelhams which are typically less than 4 inches but noticeably longer than the Tom Thumb.
• It's used with a curb chain, sitting in the chin groove.
• Mouthpieces vary widely — single-jointed, mullen, rubber, curved — independent of the short-shank feature.

Function

• Reduced leverage/severity: Because leverage is directly related to shank length, the shorter shanks mean significantly less curb action is available compared to a traditional Pelham. The top rein still provides snaffle-style pressure to the tongue and corners of the mouth, while the bottom rein still increases leverage and curb chain pressure — but the maximum amount of leverage achievable is much reduced.
• Milder overall action: This makes the Tom Thumb Pelham a gentler introduction to curb action than a standard or long-shanked Pelham, while still offering the dual snaffle/curb functionality.
• Mouthpiece effects still apply: As with any Pelham, the specific mouthpiece (single-jointed, mullen, curved, rubber) still shapes the feel — a single joint gives a nutcracker action on the tongue and bars, a mullen gives even pressure, and so on — independent of the shank length itself.

What it's good for

• Less experienced riders: Due to the reduced curb action available, the Tom Thumb Pelham is often recommended as a more forgiving option for riders who are still developing independent, educated hands, since there's less potential for accidental severity if the curb rein is used clumsily.
• More sensitive horses: The lower ceiling on leverage also makes it a reasonable option for horses that don't need or wouldn't tolerate strong curb pressure, but still benefit from a little extra "brake" beyond a plain snaffle.
• Riders wanting a lighter version of Pelham control: Suitable for those who want the general concept of a Pelham (snaffle plus optional curb) without the stronger action of a full-length-shank version.
• A stepping stone bit: Can serve as an introduction to curb-rein concepts before progressing to a standard Pelham or double bridle, since the milder leverage gives more room for error while learning.

A note on design variation and caution

• It's worth noting that "Tom Thumb" is also the name of a separate, unrelated western curb bit (short, straight-shanked, with a firm swivel mouthpiece) that has a reputation in some western riding circles for being harsher than its simple appearance suggests, due to how the joint can act on the roof of the mouth. The Tom Thumb Pelham is a different bit — an English-style Pelham with shortened shanks — but the shared name occasionally causes confusion, so it's worth confirming with a tack supplier exactly which design is being referenced.
• As with any Pelham, a properly fitted curb chain (roughly 2 fingers' clearance) is essential for correct, comfortable action.

Competition legality

Like other Pelhams, the Tom Thumb Pelham is not FEI dressage-legal, but is generally permitted in disciplines like showing, hunting, and eventing where standard Pelhams are accepted.

Summary

The Tom Thumb Pelham offers the same core snaffle-and-curb combination as a standard Pelham, but with short shanks that limit the maximum leverage available, making it a milder, more forgiving option — particularly suited to less experienced riders or more sensitive horses who benefit from some curb influence without the stronger action of a full-length Pelham.

This combines the classic single-joint mouthpiece shape with a rubber covering or construction, softening the nutcracker action's typical sharpness through material cushioning rather than through mouthpiece design changes like a double joint would.

Design

• The mouthpiece consists of two bars joined by a single center hinge — the same basic structure as any single-jointed snaffle, producing the classic "nutcracker" fold when rein pressure is applied.
• Made of, or coated in, rubber — either vulcanized natural rubber (firmer, more traditional) or a softer synthetic rubber/TPU — rather than plain metal.
• Some versions have a metal core running through the rubber for strength and shape retention, with the rubber forming the actual contact surface.

Function

• Softened nutcracker effect: The core single-joint action is unchanged — the two halves still fold upward at the center hinge under rein pressure, and the joint can still rise toward the palate. However, because the mouthpiece itself is soft and yielding rather than rigid metal, the overall sensation is considerably gentler than a stainless steel single joint, even though the underlying mechanical action is the same.
• Cushioned contact throughout: Rubber's give means the tongue, bars, and lips all experience a softer, more forgiving pressure, even at the point of the fold, compared to an unyielding metal single joint.
• Warmer, more approachable feel: Rubber stays warmer than metal, avoiding the "cold bit" sensation some horses object to.
• Direct, simple signal, softened: Riders still get the clear, straightforward communication of a single-joint mouthpiece — there's no additional link or plate diffusing the signal — but the rubber takes the edge off that directness, making the pressure feel less sharp even as the mechanical fold remains the same.
• No leverage or added severity: As with any single-jointed snaffle, this works purely on direct pressure, with no shank or curb chain.

What it's good for

• Horses that find a metal single joint too sharp, but still respond well to the clear, direct signal of a single joint: This is often a good middle-ground option — keeping the simple, unambiguous communication of a single hinge while softening the harshness some horses feel from unyielding metal.
• Young or green horses just starting bit work: The cushioned feel can make early bitting experiences more comfortable and encouraging, while still introducing the classic single-joint action many horses will eventually encounter in metal form.
• Horses with sensitive lips, bars, or mouth corners: The rubber's give reduces the risk of pinching or bruising compared to a hard metal mouthpiece.
• Horses transitioning from an all-metal single joint due to discomfort: A reasonable step toward more comfort without changing the fundamental mouthpiece shape or moving to a double-jointed design.
• Cold-weather riding: Like other rubber and polymer mouthpieces, it avoids the unpleasant sensation of an icy metal bit in winter.

A note on leaning and durability

• As with other rubber mouthpieces discussed, the softness can be a double-edged quality — some horses, particularly those already inclined to lean or brace against contact, may find it easier to push into a yielding rubber mouthpiece than a firmer one, since there's less hard resistance to respect.
• Rubber is generally less durable than polymer or metal, especially with horses that chew or mouth their bit heavily, so it's worth checking regularly for wear, cracking, or damage.

A note on classification

• The overall lateral action still depends on the cheek style (loose-ring, D-ring, eggbutt, Full Cheek, etc.) this mouthpiece is built into.
• This is generally considered a mild-to-moderate mouthpiece — softer than a metal single joint due to the material, but still carrying more of a "fold" sensation at the center than a French Link, lozenge, or mullen mouth, since the underlying single-joint mechanics remain unchanged.

Summary

A Single-Jointed Rubber bit keeps the classic, direct communication of a single-hinge mouthpiece while softening its typical sharpness through rubber's natural give — making it a useful option for horses that want the clarity of a single joint but need a gentler material, though as with any rubber mouthpiece, its softness may invite leaning in horses already prone to that tendency, and it should be checked periodically for wear.
