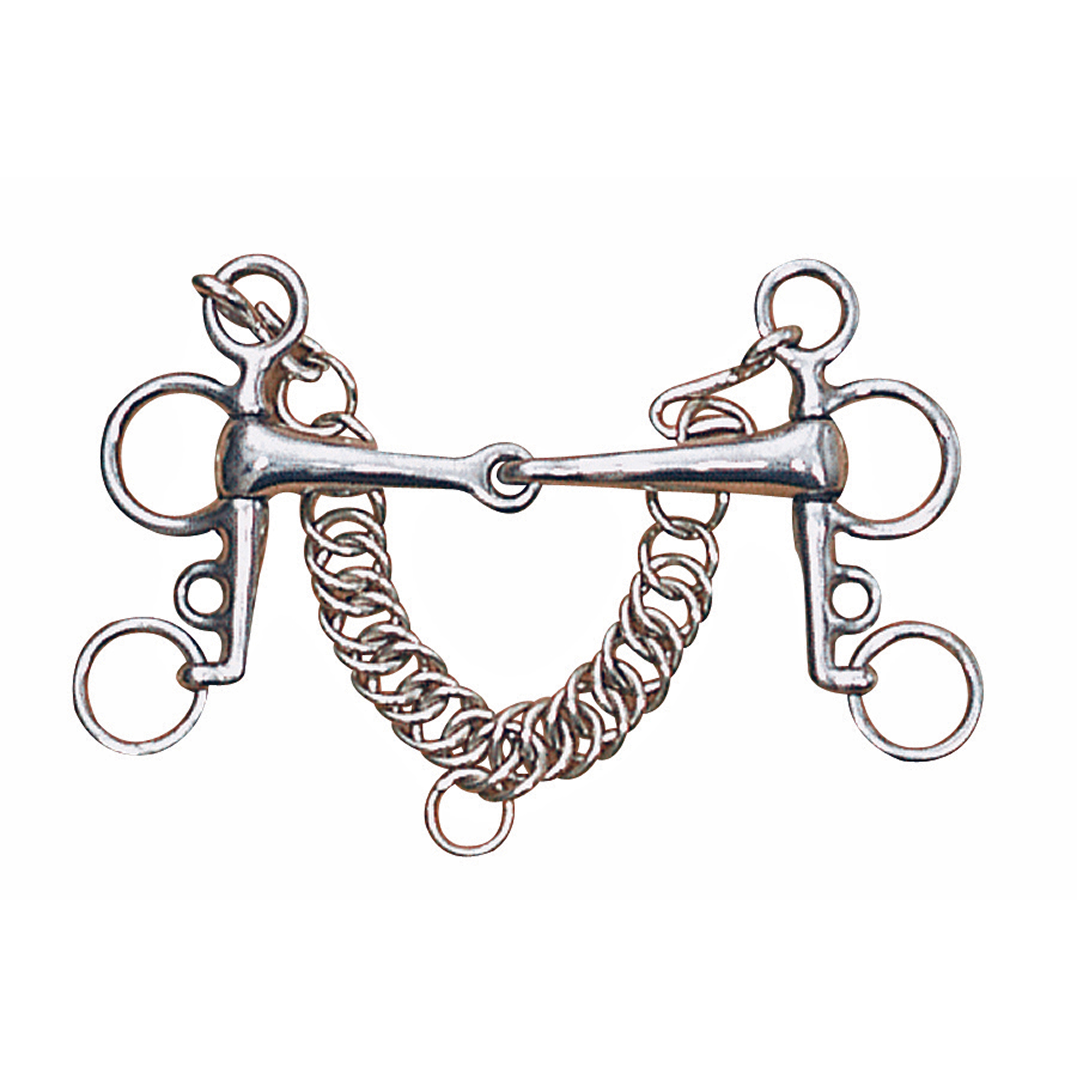

Jointed Tom Thumb Pelham Bit

A Tom Thumb Pelham is a Pelham variant built with notably shorter shanks than a traditional Pelham — the name "Tom Thumb" refers to the reduced shank length rather than a specific mouthpiece style.

Design

• Like any Pelham, it combines the function of a snaffle and a curb bit in one mouthpiece, with an upper ring at the mouthpiece for the snaffle rein and a lower ring at the end of the shank for the curb rein.
• The defining feature: short shanks — as short as around 2 inches, compared to most standard Pelhams which are typically less than 4 inches but noticeably longer than the Tom Thumb.
• It's used with a curb chain, sitting in the chin groove.
• Mouthpieces vary widely — single-jointed, mullen, rubber, curved — independent of the short-shank feature.

Function

• Reduced leverage/severity: Because leverage is directly related to shank length, the shorter shanks mean significantly less curb action is available compared to a traditional Pelham. The top rein still provides snaffle-style pressure to the tongue and corners of the mouth, while the bottom rein still increases leverage and curb chain pressure — but the maximum amount of leverage achievable is much reduced.
• Milder overall action: This makes the Tom Thumb Pelham a gentler introduction to curb action than a standard or long-shanked Pelham, while still offering the dual snaffle/curb functionality.
• Mouthpiece effects still apply: As with any Pelham, the specific mouthpiece (single-jointed, mullen, curved, rubber) still shapes the feel — a single joint gives a nutcracker action on the tongue and bars, a mullen gives even pressure, and so on — independent of the shank length itself.

What it's good for

• Less experienced riders: Due to the reduced curb action available, the Tom Thumb Pelham is often recommended as a more forgiving option for riders who are still developing independent, educated hands, since there's less potential for accidental severity if the curb rein is used clumsily.
• More sensitive horses: The lower ceiling on leverage also makes it a reasonable option for horses that don't need or wouldn't tolerate strong curb pressure, but still benefit from a little extra "brake" beyond a plain snaffle.
• Riders wanting a lighter version of Pelham control: Suitable for those who want the general concept of a Pelham (snaffle plus optional curb) without the stronger action of a full-length-shank version.
• A stepping stone bit: Can serve as an introduction to curb-rein concepts before progressing to a standard Pelham or double bridle, since the milder leverage gives more room for error while learning.

A note on design variation and caution

• It's worth noting that "Tom Thumb" is also the name of a separate, unrelated western curb bit (short, straight-shanked, with a firm swivel mouthpiece) that has a reputation in some western riding circles for being harsher than its simple appearance suggests, due to how the joint can act on the roof of the mouth. The Tom Thumb Pelham is a different bit — an English-style Pelham with shortened shanks — but the shared name occasionally causes confusion, so it's worth confirming with a tack supplier exactly which design is being referenced.
• As with any Pelham, a properly fitted curb chain (roughly 2 fingers' clearance) is essential for correct, comfortable action.

Competition legality

Like other Pelhams, the Tom Thumb Pelham is not FEI dressage-legal, but is generally permitted in disciplines like showing, hunting, and eventing where standard Pelhams are accepted.

Summary

The Tom Thumb Pelham offers the same core snaffle-and-curb combination as a standard Pelham, but with short shanks that limit the maximum leverage available, making it a milder, more forgiving option — particularly suited to less experienced riders or more sensitive horses who benefit from some curb influence without the stronger action of a full-length Pelham.

The single-jointed snaffle is the most classic, traditional bit mouthpiece design — a simple two-piece mouthpiece joined at a single center hinge, made of durable, low-maintenance stainless steel. It's the baseline against which all the double-jointed variants discussed earlier (French Link, Dr. Bristol, oval/lozenge) are typically compared.

Design

• The mouthpiece consists of two straight (or slightly curved) bars joined by a single hinge in the center — one break, rather than the two breaks found in double-jointed designs.
• Stainless steel is durable, tasteless, non-rusting, and low-maintenance, with no natural salivation-boosting properties of its own (unlike sweet iron/blue steel or copper).
• The cheek/ring style (loose-ring, D-ring, eggbutt, Full Cheek, etc.) is independent of this basic mouthpiece shape and determines the bit's lateral action and stability.

Function

• The "nutcracker" effect: This is the defining characteristic of a single joint. When rein pressure is applied, the two halves of the mouthpiece fold upward at the center hinge, forming a V-shape that presses down onto the tongue and bars while the point of the joint can rise up toward — and in some horses' mouths, contact — the roof of the mouth (palate).
• Direct, clear pressure: Despite the nutcracker action having a reputation for being sharper than double-jointed designs, many riders and trainers value the single joint precisely because it gives a very clear, direct, and immediate signal — there's no additional link or plate to soften or diffuse the pressure, so the horse feels a straightforward, unambiguous cue.
• Independent side action: Like double-jointed bits, a single joint still allows each side of the mouthpiece to move somewhat independently, which can help with clear lateral and turning cues, though the "collapse" of the joint itself is more pronounced than in double-jointed designs.
• Pressure concentration: Because there's only one hinge point, pressure and the folding action are concentrated more centrally, rather than being distributed more broadly across the tongue as with a French Link or lozenge.
• No leverage or added severity beyond the mouthpiece itself: As a true snaffle, this remains direct pressure only — no shank, curb chain, or poll pressure.

What it's good for

• Straightforward, well-established horses: Many horses go very comfortably in a single joint, especially those with average mouth conformation (not an especially low palate or a very fleshy tongue) that doesn't make them prone to discomfort from the nutcracker action.
• Riders wanting simple, direct, unambiguous communication: Because there's no additional link to soften or spread the signal, some riders and trainers prefer the single joint specifically for its clarity, particularly for teaching clear lateral or flexion cues.
• General, all-purpose riding across most disciplines: The single-jointed snaffle remains one of the most widely used and recognized mouthpiece shapes worldwide, suitable for schooling, hacking, and competition in disciplines from dressage to jumping to Western riding.
• Riders on a budget or wanting a dependable default: Being the simplest, most classic jointed design, single-jointed stainless steel snaffles tend to be widely available and affordable.

A note on suitability

• Horses with a low palate, thick or fleshy tongue, or particular sensitivity in the mouth may find the nutcracker action of a single joint uncomfortable, since the rising point of the joint has more potential to contact the roof of the mouth — these horses are often better suited to a double-jointed mouthpiece (French Link, lozenge) that eliminates or reduces this action.
• Whether a single joint is "harsh" is also very individual — some horses that seem uncomfortable in a double-jointed bit (due to the independently moving sides, or a poorly-shaped center link) may actually go more settled and confident in a plain single joint, so it's not universally milder or harsher; it depends on the horse's specific conformation and preference.
• As with all bits, its severity in practice depends heavily on the rider's hands — a single joint used with quiet, educated contact can be entirely appropriate even for sensitive horses, while a double-jointed bit used harshly can still cause discomfort.

A note on classification

• The overall lateral action and stability still depends on the cheek style the mouthpiece is built into — a single joint on a loose-ring will feel different from the same mouthpiece on a D-ring or Full Cheek.
• Single-jointed stainless steel is generally considered a standard, moderate mouthpiece — milder than a Dr. Bristol or Broken Segunda, but with more of a "point" of pressure than a French Link, oval/lozenge, or mullen mouth.

Summary

A Single-Jointed Stainless Steel bit offers the most classic, traditional jointed mouthpiece shape — direct, clear pressure via a single center hinge, paired with a practical, low-maintenance material — making it a dependable, widely used, all-purpose choice suited to most horses with typical mouth conformation, though horses with a low palate or particularly sensitive mouth may do better in a double-jointed alternative that softens or eliminates the nutcracker action.
