Low Port Weymouth Bit

A Weymouth bit is the curb component of a double bridle — the traditional two-bit system used at the upper levels of dressage (and in some other formal disciplines like the show ring). It's always used alongside a separate, thin snaffle called a bridoon, with the two bits working together but independently.

Design

• The Weymouth has a fixed shank (unlike the Pelham's single ring with two attachment points) extending below the mouthpiece, with the rein attaching only at the bottom of the shank.
• The mouthpiece usually has a port (an upward arch in the center) of varying height, which allows room for the tongue and can increase pressure on the bars and roof of the mouth as the port rotates back with rein pressure.
• It is used with a curb chain, sitting in the chin groove, which engages as the shank rotates.
• The bridoon (a small, thin snaffle ring) sits above/alongside the Weymouth in the mouth, attached to its own separate cheekpiece and rein — hence "double bridle," referring to the two bits and two sets of reins together.
• Shanks come in varying lengths, and mouthpieces vary in port height and thickness, allowing the severity to be tailored to the horse.

Function

• Pure leverage/curb action: Because the rein attaches only at the shank's end (there's no snaffle-style ring at the mouthpiece for direct rein use), the Weymouth acts purely as a leverage bit — every ounce of rein pressure is amplified through the shank onto the poll, mouth, and chin groove.
• Refined, subtle aids: In a double bridle, the Weymouth (curb) rein is used far more sparingly and subtly than the bridoon (snaffle) rein — mostly for fine-tuning flexion, collection, and self-carriage rather than steering or day-to-day contact.
• Poll and chin pressure: As the shank rotates back under rein pressure, it applies pressure to the poll (via the cheekpiece) and to the chin groove (via the curb chain), encouraging the horse to soften, flex at the poll, and round through the topline.
• Port action: Depending on port height, the mouthpiece may relieve tongue pressure while increasing pressure on the bars, or (with a higher port) act more on the roof of the mouth — refining exactly where pressure is felt.
• Complementary to the bridoon: The snaffle (bridoon) rein handles the everyday steering, forward contact, and lateral aids, while the Weymouth rein is reserved for advanced, precise, momentary adjustments — the two work together rather than one replacing the other.

What it's good for

• Highly trained horses at advanced levels of dressage: The double bridle (Weymouth + bridoon) is traditionally introduced only once a horse is established in collection, self-carriage, and consistent, correct contact — typically at Prix St Georges level and above in FEI dressage.
• Refining collection and self-carriage: The subtle curb action helps refine the finished, highly collected outline expected at Grand Prix-level movements (e.g., piaffe, passage, collected work).
• Experienced riders with independent, educated hands: Because the Weymouth is a pure leverage bit with no direct/snaffle option of its own, it demands very precise, quiet hands — heavy or unclear use can cause significant discomfort and confusion.
• Formal show classes: Also traditionally used (often with a plainer double bridle setup) in certain in-hand and ridden show classes outside dressage, for a finished, polished presentation.

A note on severity and use

• The Weymouth is considered one of the more severe bits discussed here, precisely because it offers no direct-pressure option — all rein pressure on that bit is leveraged.
• It is never intended for green, young, or lower-level horses — using a double bridle prematurely (before the horse is truly established in balance and self-carriage) can create resistance, tension, and mouth problems rather than refinement.
• Proper curb chain fit (with roughly 2 fingers' clearance) and correct sizing/positioning of both bits together in the mouth are essential, since the horse is carrying two bits at once.
• Skilled riders use the curb rein with great subtlety — often just a light "closing" of the fingers — relying primarily on the bridoon for the bulk of everyday contact and steering.

Competition legality

The Weymouth, as part of a double bridle, is FEI-approved — but specifically only for use at the advanced levels of dressage where double bridles are permitted (Prix St Georges and above), and is not used or needed at lower levels, where only a plain snaffle is allowed.

Summary

The Weymouth is a pure leverage curb bit used as one half of a double bridle, working alongside the bridoon snaffle to refine collection, poll flexion, and self-carriage in highly trained dressage horses — offering precise, advanced control in the hands of experienced riders, but considered too severe and unnecessary for green horses or lower levels of training.

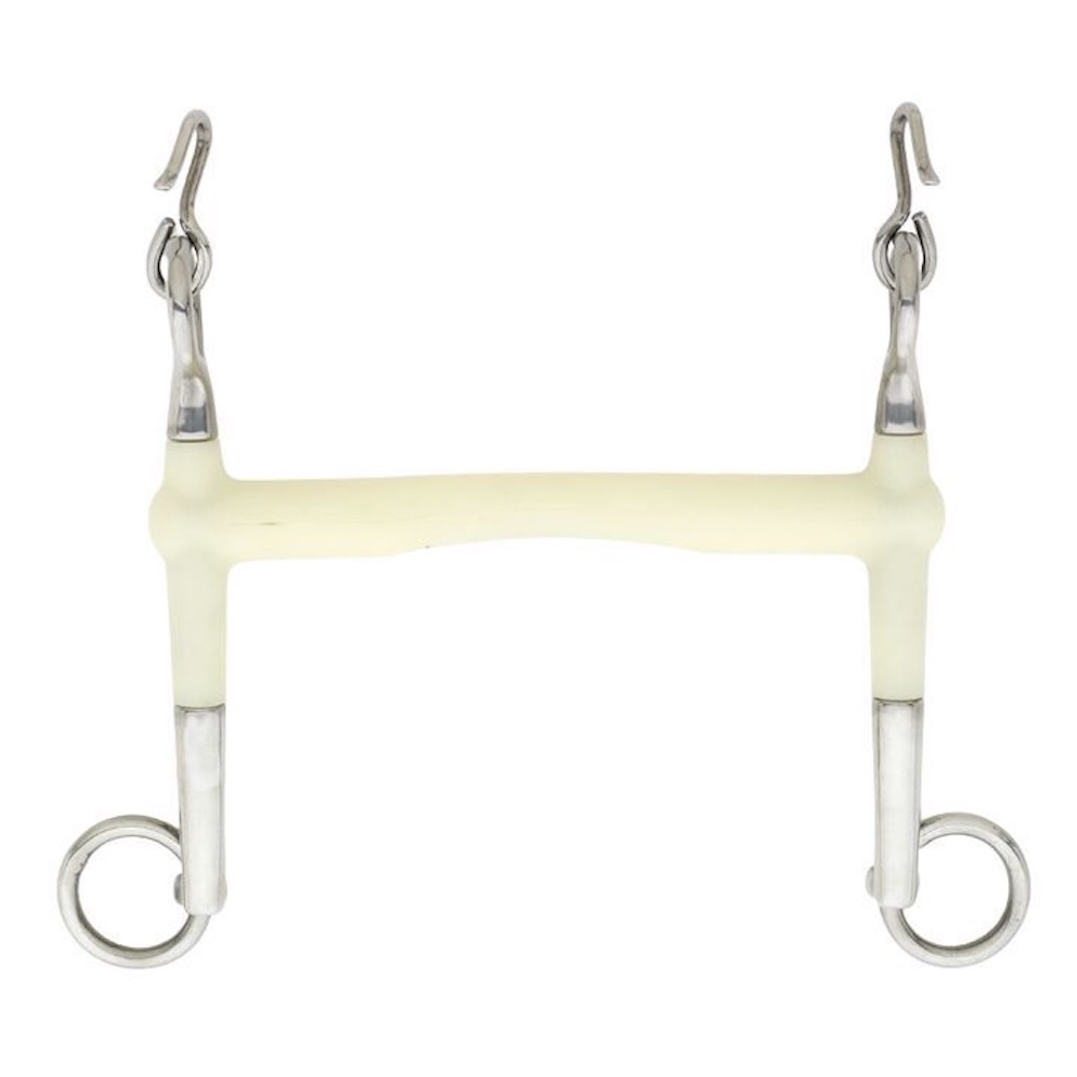

This combines a non-jointed mouthpiece with a small raised port in the center, built in soft polymer — a gentler cousin of both the mullen mouth (no port at all) and higher-ported curb designs, offering mild tongue relief without significant palate pressure.

Design

• The mouthpiece is a solid, non-jointed bar, similar to a mullen mouth, but instead of a uniform, evenly curved bar, it has a small raised area (port) in the center.
• The port is low — meaning it doesn't rise very far from the rest of the bar, working similarly in principle to a mullen mouth but with a bit of extra room carved out specifically for the tongue.
• Made of soft, flexible polymer, often apple-scented, typically molded around a stainless steel core for strength.

Function

• Mild tongue relief: The small raised port creates a bit of extra space for the tongue to sit in, reducing the constant, uniform pressure a plain mullen or straight bar would place directly across the tongue's entire width.
• Pressure shifts slightly toward the bars: Because the tongue has some room to occupy the port, a bit more of the pressure the horse feels is directed toward the bars of the mouth rather than pressing flat across the tongue — though a low port, unlike a high port, still keeps this effect quite mild.
• No significant palate pressure: Unlike a high port (which can rotate up into the roof of the mouth under rein pressure), a low port sits well clear of the palate, so it doesn't create the palate-contact sensation associated with taller ports.
• No nutcracker action: Since this is a non-jointed mouthpiece, there's no folding or V-shaping under rein pressure — the same joint-free gentleness as a mullen mouth applies here.
• Softened further by polymer: The soft, flexible material adds cushioning on top of the mouthpiece's already gentle mechanics, and the pleasant scent helps encourage acceptance.
• No leverage or added severity from the mouthpiece itself: Whether on a snaffle-style cheek or a shanked cheek (low ports appear on both), the port and material discussed here don't add leverage on their own — any leverage present depends entirely on the cheek/shank design it's paired with.

What it's good for

• Horses with a thick tongue: The small amount of extra room the port provides can make a real difference for horses whose tongue takes up more space than typical, who might otherwise feel crowded by a completely flat mullen or straight bar.
• Horses that resent constant, uniform tongue pressure: Some horses are specifically bothered by a mouthpiece pressing evenly across the whole tongue; a low port gives a small but meaningful area of relief.
• Young horses transitioning toward more structured bits: Low ports are commonly used as a step for young horses moving from a plain snaffle toward a shanked bit later in training, since the port introduces a bit more shape and structure without much added severity.
• Older, well-broke horses: Also commonly used for mature, experienced horses that are settled and simply benefit from a comfortable, tongue-relieving mouthpiece for everyday riding.
• Horses transitioning from metal, apprehensive of firmer contact: As with any polymer mouthpiece, the softness and scent help ease horses into accepting a bit, now paired with the added comfort of some tongue room.

A note on severity

• Despite involving a "port" (a feature sometimes associated with stronger curb bits), a low port is considered mild — it's specifically distinguished from higher ports, which do apply real palate pressure when engaged. A low port's function is much closer to a mullen mouth than to a true curb-style ported mouthpiece.
• As with any bit, actual severity in practice depends on how it's used — a misused ported bit, even a low one, can still cause discomfort, so thoughtful, educated hands remain important.

A note on classification

• The overall lateral action still depends on the cheek style (loose-ring, D-ring, eggbutt, Full Cheek, shanked/curb cheek, etc.) this mouthpiece is built into, and whether any genuine leverage is present depends entirely on that cheek choice, not the port or polymer material.
• This sits at the mild end of the mouthpiece spectrum, similar to a mullen mouth but with a small additional comfort feature (the tongue-relieving port) layered in.

Summary

A Low Port Polymer bit offers a solid, joint-free mouthpiece with a small raised port for mild tongue relief, built in soft, comfort-focused polymer — providing a gentle step up in tongue accommodation from a plain mullen mouth without introducing meaningful palate pressure, making it a good option for horses with a thick tongue, young horses transitioning toward more structured bits, or well-broke horses that benefit from a comfortable, everyday mouthpiece.
